SPECIFICATIONS
Advantages:
1) Corrosion Resistance: Expanded metal adopts galvanized or aluminum-zinc alloy coating, which can effectively resist rust and chemical erosion, has a long service life and low maintenance cost.

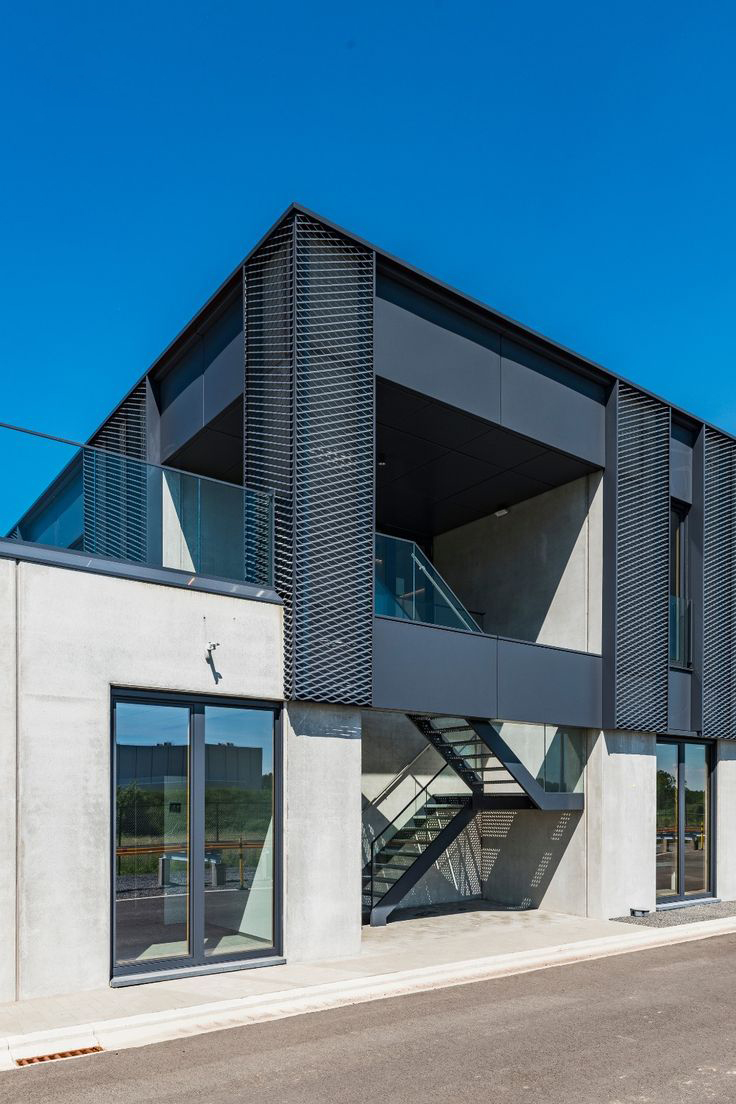

2) Ventilation & Drainage: The mesh structure has high permeability, which promotes air circulation in hot weather and reduces the temperature inside the building.
3) Lightweight & Cost-effective: Compared with solid steel plates, expanded metal is light in weight and has low transportation and installation costs.
JIS
SWD (mm)
LWD (mm)
T (mm)
W (mm)
kg/m²
914×1829 kg/piece
1219×2438 kg/piece
1524×3048 kg/piece
XS31
12
30.5
1.2
1.5
2.36
3.95
7.01
11
XS32
12
30.5
1.6
2
4.19
7.01
12.5
19.5
XS33
12
30.5
2.3
3
9.03
15.1
26.8
41.9
XS41
22
50.8
1.6
2
2.28
3.81
6.78
10.6
XS42
22
50.8
2.3
2.5
4.1
6.86
12.2
19
XS43
22
50.8
3.2
3.5
8
13.4
23.8
37.2
XS51
25
61
1.6
2.5
2.51
4.2
7.46
11.7
XS52
25
61
2.3
3
4.33
7.24
12.9
20.1
XS53
25
61
3.2
4
8.05
13.5
23.9
37.4
XS61
34
76.2
2.3
3
3.19
5.33
9.48
14.8
XS62
34
76.2
3.2
4
5.91
9.88
17.6
27.5
XS63
34
76.2
4.5
5
10.4
17.4
30.9
48.3
XS71
50
152.4
2.3
3.5
2.53
4.23
7.52
11.8
XS72
50
152.4
3.2
4
4.02
6.72
11.9
18.7
XS73
50
152.4
4.5
5
7.06
11.8
21.1
32.8
XS81
75
203.2
3.2
4
2.68
4.48
7.96
12.4
XS82
75
203.2
4.5
5
4.71
7.88
14
21.9
XS83
75
203.2
6
6
7.54
12.6
22.4
35
XS91
115
304.8
3.2
5
2.18
3.64
6.48
10.1
XS92
115
304.8
4.5
6
3.69
6.17
11
17.1
XS93
115
304.8
6
7
5.74
9.6
17.1
26.7
